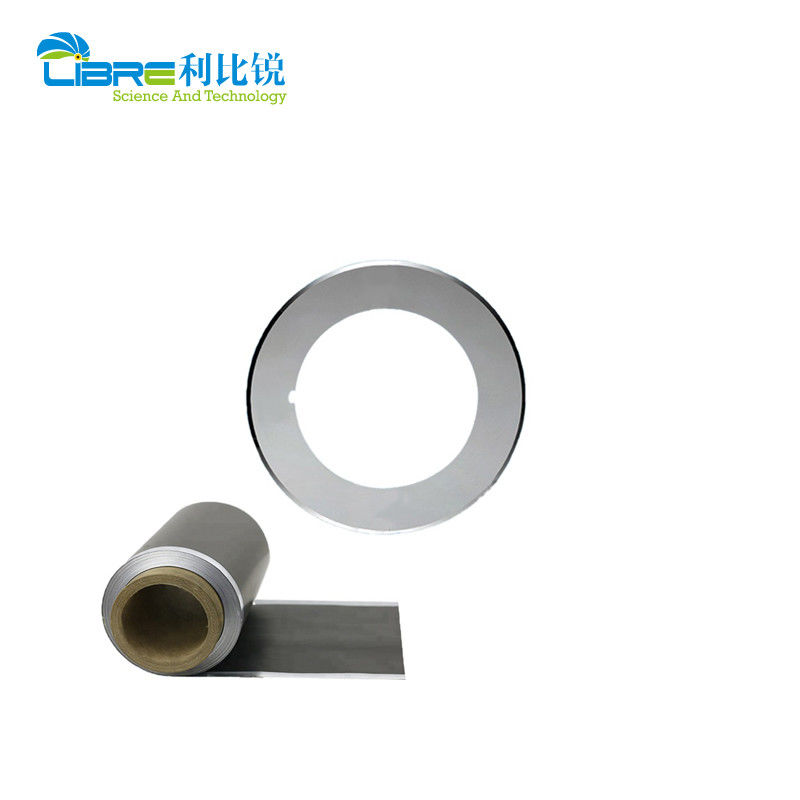

100x65x0.7mm Circular Slitter Blades For Li Battery Electrodes

100x65x0.7mm Circular Slitter Blades For Li Battery Electrodes

0.7mm Circular Slitter Blades

OD100mm Circular Slitter Blades

0.7mm circular cutting blades

Place of Origin:

Chengdu

Brand Name:

Libre

Certification:

ISO9001

Model Number:

Li Battery Electrodes Slitting Knife

Contact Us

Request A Quote
100x65x0.7mm Circular Slitter Blades For Li Battery Electrodes
100x65x0.7mm Circular Slitter Blades For Li Battery Electrodes 100x65x0.7mm Circular Slitter Blades For Li Battery Electrodes
Product Details
Other Name:
Li Battery Electrode Slitting Top And Bottom Blade
Material:
Tungsten Carbide
Hardness:
HRA89~92.5
Surface:
Mirror Finished
Aplication:
For Slitting Lithium Battery Anode And Cathode Electrodes
Coating:
No
Top Blade:
100x65x0.7mm
Bottom Blade:
100x65x2mm
Payment & Shipping Terms
Minimum Order Quantity
10 sets
Price
USD 20~80/set
Packaging Details
Inner packing: plastic box; outber packing: carton box
Delivery Time
2-30 business days
Payment Terms
T/T, Western Union, MoneyGram,PayPal
Supply Ability
1000 sets per month
RELATED PRODUCTS
Good price Tungsten Carbide Circular Slitter Blades Knives Blade For Lithium Battery Anode Copper Foil online Video

Tungsten Carbide Circular Slitter Blades Knives Blade For Lithium Battery Anode Copper Foil

Get Best Price
Good price Mirror Finished Rotary Razor Slitter Knives For Isowa Machine Paperboard Slitting online Video

Mirror Finished Rotary Razor Slitter Knives For Isowa Machine Paperboard Slitting

Get Best Price
Good price OD 200mm Carbide Circular Slitter Blade Razor For Justu Corrugated Machine Knives online Video

OD 200mm Carbide Circular Slitter Blade Razor For Justu Corrugated Machine Knives

Get Best Price
Good price Full Carbide Circular Slitter Thin Blades For Cutting Lithium Battery Foil Film online Video

Full Carbide Circular Slitter Thin Blades For Cutting Lithium Battery Foil Film

Get Best Price
Contact Us
86-28-85599556
david@ztferre.com
86-28-85599556
Contact Now
Product Description

Aluminum Foil Slitter Blade for Lithium Battery Electrodes Top And Bottom Knife



The slitting of coated aluminum and copper foil used in Lithium Battery Production requires highly precision circular slitting blades. The blades’ production need to follow micron level tolerances, which is challenging for most of knife manufacturers. With more than 20 years’ experience, we can take care of the slitting blades’ outer diameter, inner diameter, thickness, concentricity, flatness and other parameters under strict control within the industry’s standards, or even surpassing the standards!



The coated foils are subsequently fed into slitting machines to cut the foil into narrower strips suitable for different sizes of electrodes. Later they are cut to length. Any burrs on the edges of the foil strips could give rise to internal short circuits in the cells so the slitting machine must be very precisely manufactured and maintained.



Common Sizes Including Not Exclusive To:



Top Blade Bottom Blade
100x65x0.7mm 100x65x2mm
100x65x1mm 100x65x3mm
110x90x1mm 110x75x3mm
130x88x1mm 130x70x3mm
130x88x1mm 130x70x5mm
130x97x0.3mm 130x95x4mm
130x97x1mm 130x95x5mm



100x65x0.7mm Circular Slitter Blades For Li Battery Electrodes 0



Application of Circular Slitter Blades:



These blades are used for lithium battery pole piece cutting. The ultrafine particles of tungsten carbide sitting lithium iron phosphate, lithium manganese oxide, cobalt oxide, and other materials. Nishimura, Yakang. Lange, supporting, Hao can win, qixinghuachuang Supporting the sharp maxima, Dudley, models life can be divided according to the material, usually in the 80 thousand meters to 300 thousand meters range.



100x65x0.7mm Circular Slitter Blades For Li Battery Electrodes 1



100x65x0.7mm Circular Slitter Blades For Li Battery Electrodes 2

Tags：

HRA92.5 Circular Cutting Blades

HRA92.5 rotary slitter blades

3.0mm Tungsten Carbide Slitter Blades
