Cork Paper Glue Online Detection System Physical Measuring For Cigarette Filter Cigarillos Capsule Cigar Heat-Not-Burn

Cork Paper Glue Online Detection System Physical Measuring For Cigarette Filter Cigarillos Capsule Cigar Heat-Not-Burn

Place of Origin:

China

Brand Name:

Libre

Certification:

ISO 9001:2015

Model Number:

MGI-A

Contact Us

Request A Quote
Product Details
Application:
Filter Rod Making Machine
Power Supply:
AC 220V±10%; 50Hz±5%
Air Source Requirements:
<10Bar
Ambient Temperature:
+10°C~+40°C
Ambient Humidity:
20%-80%
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
20,000-200,000USD
Packaging Details
wooden box
Delivery Time
2-4 months
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
5 sets/3 months
Product Description

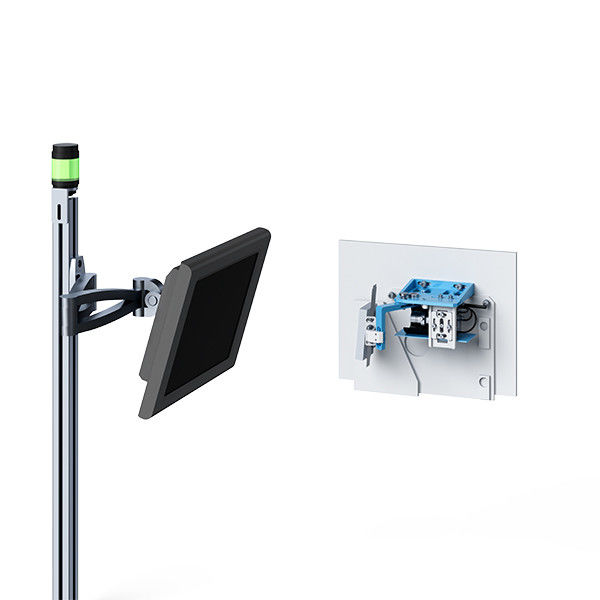

The MGI-A Cork Paper Glue Online Detection System provides you with online measurement and monitoring of centerline glue and lap glue in the filter rod forming machine. The centerline glue can bond the filter rod and the forming paper, thus ensuring the quality of the filter rod, especially the composite filter rod. Because the centerline glue is hidden inside the filter rod, we cannot judge whether the glue is broken in the finished product. Therefore, the quality of the glue line on the forming paper must be monitored online. The system is of great significance for ensuring the quality of products, reducing the consumption of raw materials and reducing labor intensity.



Cork Paper Glue Online Detection System Physical Measuring For Cigarette Filter Cigarillos Capsule Cigar Heat-Not-Burn 0



Performance and Features



1. Machine vision is adopted to detect the glue line, which does not affect the passing of the forming paper or damage the glue line.

2. It can detect high and low-permeability forming paper.

3. It can detect the centerline glue (white latex) and lap glue (hot melt adhesive).

4. It can simultaneously calculate the width and continuity of the glue line.

5. It can dynamically display the glue line image, measured width and qualification judgment.

6. When the glue line becomes light and is short of glue intermittently, a light warning is given; In case of continuous glue shortage, a light fault signal is given in time, and a rejection signal of the shutdown port is given to the forming machine.

7. It can set the paper type, paper width, glue line position, and glue line parameters.

8. It can configure alarm conditions and shutdown conditions.

9. It can save operation log and provide query function.


Technical parameters





Maximum width of cork paper 30mm (including coarse and thin filter rods)
Machine running speed 50-600 m/min
Maximum installation length 170 mm
Glue line width measurement accuracy 0.1mm
Sampling frequency At least 50 sheets/second
Measurement accuracy 0.2m (600m/min)
Width of cork paper 19 ~ 26mm





We supply physical characteristics testing instruments for tobacco industry. For example, the measuring and testing equipments for the bellow areas.
1. regular cigarette/filter rods
2. capsule cigarette/filter rods
3. heat-not-burn cigarettes
4. cigars
5. flavor capsules
We also can cater to your specific testing requirements and customized the tobacco insepction stations.
