Cigarette Filter Hardness Tester Physical Measuring Station For Cigar Cigarillo Capsule Heat-Not-Burn Inspection

Cigarette Filter Hardness Tester Physical Measuring Station For Cigar Cigarillo Capsule Heat-Not-Burn Inspection

Place of Origin:


Brand Name:



ISO 9001:2015

Model Number:

SHG-E Cigarette Filter Hardness Tester

Contact Us

Request A Quote
Product Details
Measuring And Testing Of The Physical Charactoristics Of Tobacco Products
Cigarette Products Manufacturers, Testing-certification Institutions, Laboratories
Power Supply:
Operating Ambient Temperature:
Operating Ambient Humidity:
Air Source:
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
wooden box
Delivery Time
2-4 months
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
5 sets/3 months
Product Description
The SHG-E Cigarette Filter Hardness Tester is used to measure the hardness of cigarette and filter rod. The test bench adopts a drawer design, has high automation and is compatible with samples of various specifications, including regular cigarettes, medium cigarettes, thin cigarettes, special cigarettes, heat-not-burn cigarettes, common filter rods, medium filter rods, thin filter rods and special filter rods.

The test bench applies to multiple links in the cigarette and filter rod production, such as on-line sampling inspection in the production workshop, and inspection and spot check of cigarette and filter rod samples in testing stations and laboratories at all levels, etc. The test bench uses a Chinese operation interface, easy to operate and learn.
Cigarette Filter Hardness Tester Physical Measuring Station For Cigar Cigarillo Capsule Heat-Not-Burn Inspection 0
Performance and Features

1. It applies to cigarettes and filter rods with various specifications.

2. It adopts the industrial tablet computer, suitable for industrial field and other scenarios.

3. It adopts the imported laser micrometer, with high precision and high resolution.

4. It adopts advanced technologies such as direct vertical pressure by weights, air bearing zero friction, and laser non-contact measurement, thus accurately controlling the pressure load for precise mechanism, stable and reliable work.

5. The sample measurement position can be set steplessly and in a wide range.

6. It provides high-speed automatic measurement and intelligent self inspection.

7. It provides Chinese graphical interface and touch screen, easy to use and quick to grasp; It adopts a built-in thermal printer for real-time printing of measurement results.

8. It is configured with USB, RS232 and network interfaces to support data acquisition.

Technical parameters

Sample length range 55 ~ 150mm
Sample circumference range 15.5 ~ 28.5mm
Measurement range 0~100%
Measurement accuracy ±0.5%
Pressure load 2.94N±0.01N
Compression time 15s±1s
Detection range of indentation 0~10mm,
Detection accuracy of indentation ±0.005mm,
Overall size Host 570x600x620mm (without computer), stand 560x520x740mm

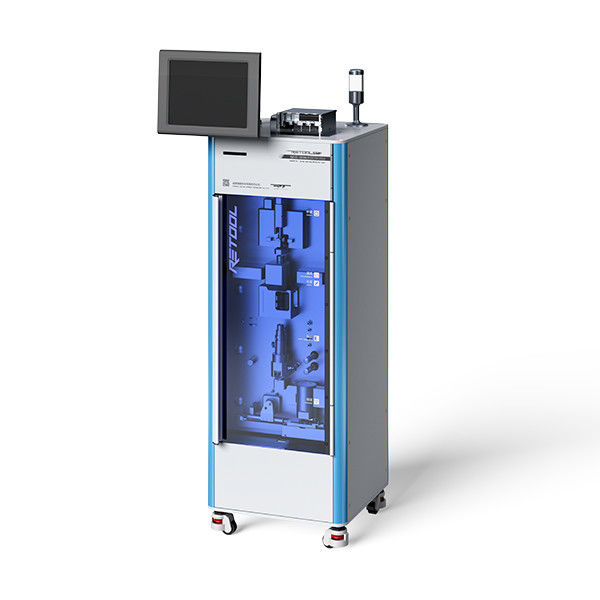

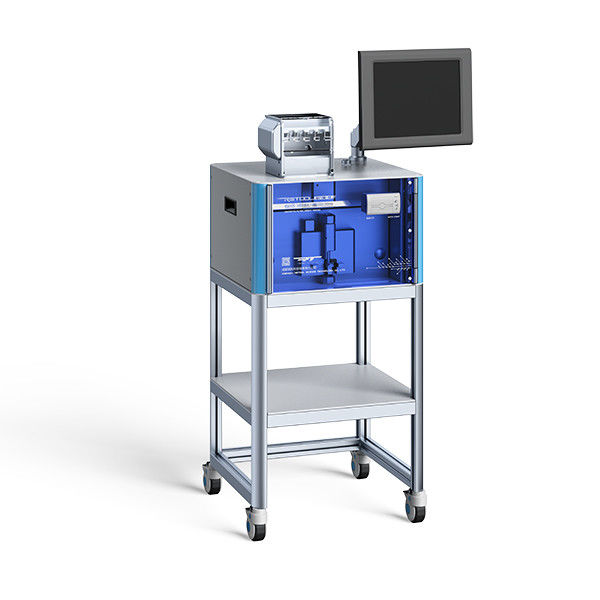

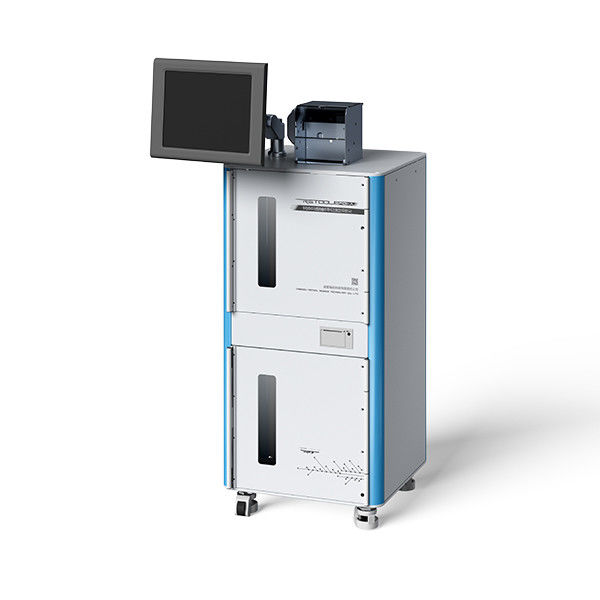

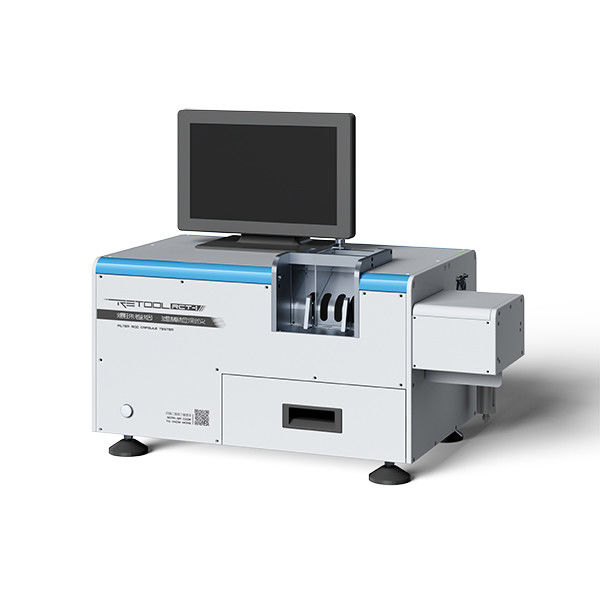

We supply physical characteristics testing instruments for tobacco industry. For example, the measuring and testing equipments for the bellow areas.
1. regular cigarette/filter rods
2. capsule cigarette/filter rods
3. heat-not-burn cigarettes
4. cigars
5. flavor capsules
We also can cater to your specific testing requirements and customized the tobacco insepction stations.
