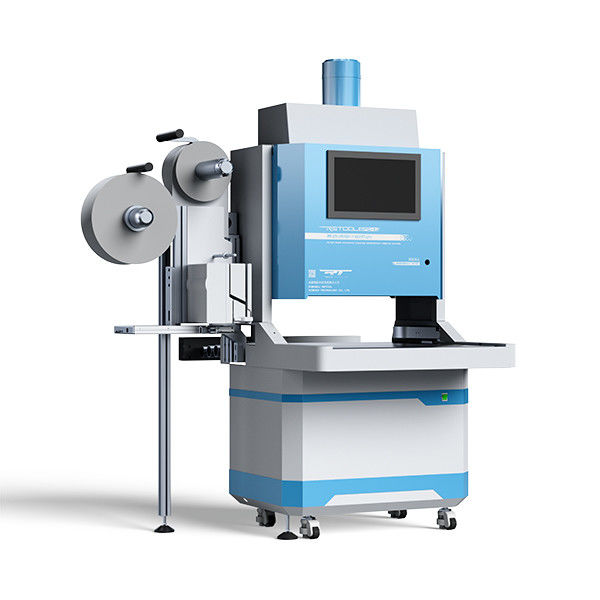

The SWG-E Cigarette Filter Weight Tester is used to measure the weight of cigarette and filter rod. The test bench adopts a drawer design, has high automation and is compatible with samples of various specifications, including regular cigarettes, medium cigarettes, thin cigarettes, special cigarettes, heat-not-burn cigarettes, common filter rods, medium filter rods, thin filter rods and special filter rods.
The test station applies to multiple links in the cigarette and filter rod production, such as on-line sampling inspection in the production workshop, and inspection and spot check of cigarette and filter rod samples in testing stations and laboratories at all levels, etc. The test bench uses a Chinese(or another language of your choice) operation interface, easy to operate and learn.
We supply physical characteristics testing instruments for tobacco industry. For example, the measuring and testing equipments for the bellow areas.
1. regular cigarette/filter rods
2. capsule cigarette/filter rods
3. heat-not-burn cigarettes
4. cigars
5. flavor capsules
We also can cater to your specific testing requirements and customized the tobacco insepction stations.
Performance and Features
1. It applies to cigarettes and filter rods with various specifications.
2. It adopts the industrial tablet computer, suitable for industrial field and other scenarios.
3. It adopts the imported high-precision electronic balance, with high precision, high resolution.
4. It provides high-speed automatic measurement, intelligent real-time self-check, automatic calibration and net weight.
5. It provides Chinese graphical interface and touch screen, easy to use and quick to grasp; It adopts a built-in thermal printer for real-time printing of measurement results.
6. It is configured with USB, RS232 and network interfaces to support data acquisition.
Technical parameters
| Sample length range |
55 ~ 150mm |
| Sample circumference range |
15.5 ~ 28.5mm |
| Measurement range |
0~200.000g |
| Resolution |
0.001g |
| Measurement accuracy |
±0.001g |
| Overall size |
Host 570x600x620mm (without computer), stand 560x520x740mm |
|
