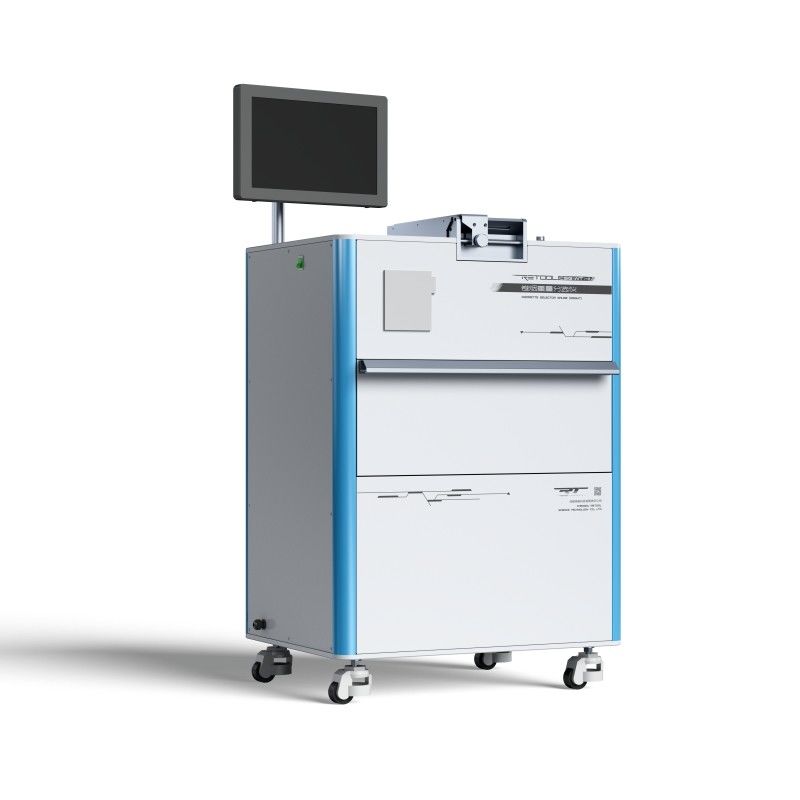

CSG(WT)-II Cigarette Weight Sorter

CSG(WT)-II Cigarette Weight Sorter

Place of Origin:

Chengdu

Brand Name:

RT

Certification:

ISO

Model Number:

CSG(WT)-II

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 50000~100000 per set
Packaging Details
wooden case
Delivery Time
1~2 month
Payment Terms
T/T, Western Union,PayPal
Supply Ability
50 sets per months
Product Description

Product introduction:



  1. The CSG(WT)-II Cigarette Weight Sorter adopts the optimized weighing system, new drawer-type sorting device and automatic control system to ensure high measurement precision, good accuracy and stability. It is used for quickly sorting cigarettes according to the setting of weight range.
  2. It adopts imported precision electronic balance, with high precision, high resolution, and high reliability.
  3. It can automatically complete the weighing and sorting of cigarettes without manual intervention. The working speed is high and the cigarette filter rods after sorting are in the same direction.
  4. The large-capacity hopper can be used to measure samples of different diameters and lengths, and can be automatically switched.
  5. The falling height of the sample is small, and a slow-down device is arranged to prevent the tobacco shreds from falling off.
  6. It adopts the drawer-type sorting device and its sorting box can be taken out, easy to recycle cigarettes.
  7. The floor case is equipped with universal wheels to move easily.
  8. The built-in thermal printer can print the measurement data.
  9. It adopts Windows system, and Chinese graphical operation interface, convenient to use.



Measurement principle:



The CSG(WT)-II Cigarette Weight Sorter is the newly-designed second generation of Cigarette Weight Sorter for detection and analysis of the cigarette characteristics and the uniformity pretreatment of experimental samples. It can automatically, rapidly, continuously and non-destructively sieve cigarettes by weight.



Compared with the first generation:



It adopts a fully compatible hopper for measuring samples of different sizes without any external adjustment.



It adopts a large-capacity hopper with capacity increased by more than 3 times.



It adds a cigarette slow-down device to reduce the risk of tobacco falling.



Main performance indicators:



Sample length range

55 ~ 144 mm

Sample diameter range

5 ~9 mm

Sample weight range

0.4 ~ 2 g

Resolution

0.0001g or 0.001g

Measurement accuracy

±0.001 g

Hopper capacity

700

Number of sorting channels

6 (including waste bin)

Overall size

875x682x1384 mm





Requirements for service environment:



Power supply

AC220V±10%

50Hz±5%

Operating ambient temperature

10°C~+35℃

Recommended ambient temperature (22±2) ℃

Operating ambient humidity

40%~65%RH

Recommended ambient humidity (60±5)%RH
