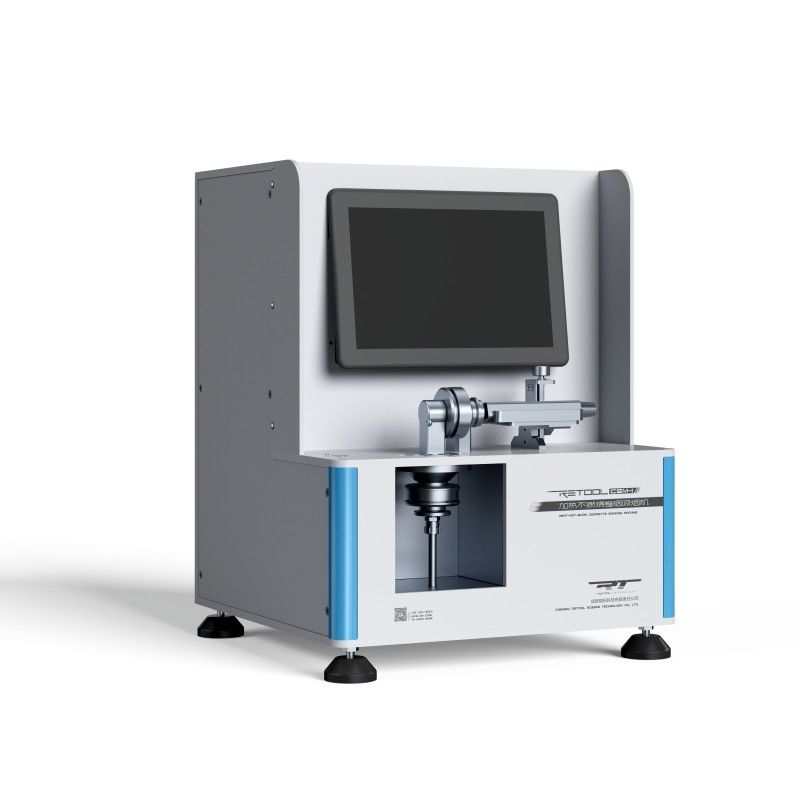

CSM-I Heat-Not-Burn Cigarette Smoking Machine

CSM-I Heat-Not-Burn Cigarette Smoking Machine

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 set
USD 50000~100000 per set
Packaging Details
wooden case
Delivery Time
1~2 month
Payment Terms
T/T, Western Union,PayPal
Supply Ability
50 sets per months
Product Description

Product introduction:


The CSM-I Heat-Not-Burn Cigarette Smoking Machine is specially used for the standard smoking of heat-not-burn cigarettes and trapping the smoke’s particulate matter. It applies to the research and analysis of heat-not-burn cigarettes. The complete smoking path and cigarette holder meet the requirements of a universal smoking machine and support a variety of smoking curves and modes. The heater clamp can be quickly adjusted and replaced while supporting the smoking needs of traditional cigarettes.


Performance and features:


It adopts high-performance industrial computer and LCD touch screen with Chinese user interface.

The pressure drop of smoking channel is less than 300Pa, and the smoking process meets the restrictive smoking standards.

Users can customize the smoking parameters and curve type.

The cigarette bracket can support the heat-not-burn cigarette heater, with adjustable position and height of the bracket.

It supports smoking of traditional cigarettes without replacing accessories.

It adopts the 44mm filter to capture the smoke. The filter is easy to be extracted and replaced with the quick release.


Main technical indicators:


Smoking volume

(15-130) ±0.3 mL

Smoking time

(1.0-10.0) ±0.02 s

Smoking curve

Bell and trapezoid

Smoking interval

(10-999) ±0.5 s

Smoke capture

44 mm Cambridge filter

Overall size

380x380x520 mm


Requirements for service environment:


Power supply



Operating ambient temperature


Recommended ambient temperature (22±2) ℃

Operating ambient humidity


Recommended ambient humidity (60±5)%RH

Air source


≥80L/min No water, no oil, no dust
