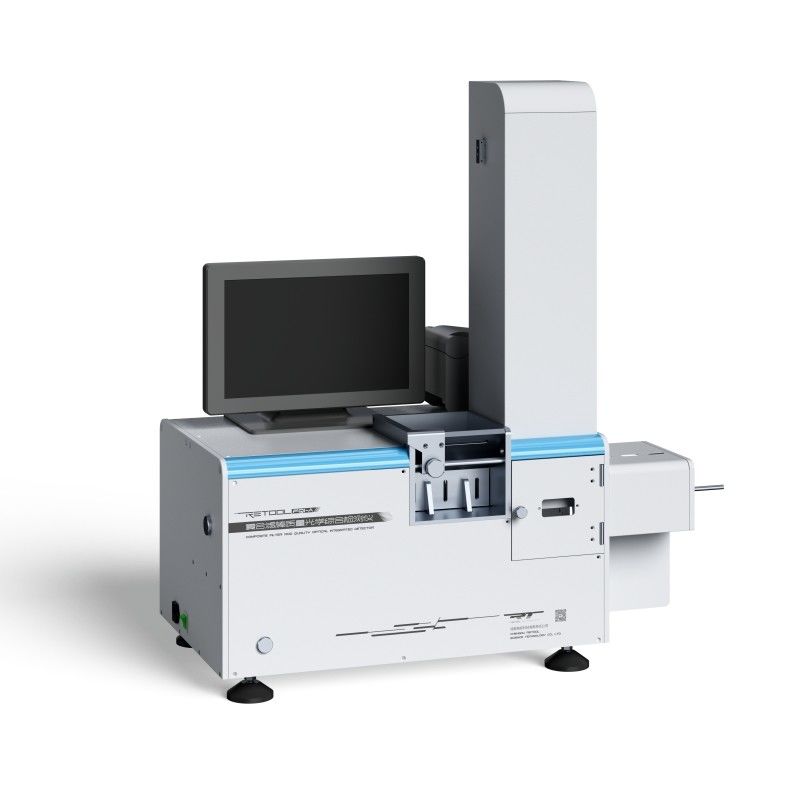

FQI-A Composite Filter Rods Quality Optical Integrated Detector

FQI-A Composite Filter Rods Quality Optical Integrated Detector

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 set
USD 50000~100000 per set
Packaging Details
wooden case
Delivery Time
1~2 month
Payment Terms
T/T, Western Union,PayPal
Supply Ability
50 sets per months
Product Description

Product introduction:


The FQI-A Composite Filter Rods Quality Optical Integrated Detector is used to automatically detect the segment length, composite gap and phase of composite filter rods, which can improve the detection level of tobacco products. It is a new advanced automatic detection device for composite filter rods in tobacco industry in China.


Performance and features:


  • It is suitable for the detection of composite filter rods with different diameters and lengths, and can be switched quickly.
  • The combined light source can be used to detect pure-color filter rods (fluorescent signal is required).
  • Mechanical turnover process can be used to detect multiple angles of filter rod and accurately extract characteristic parameters.
  • With sorting function, it can eliminate unqualified products.

Main performance indicators:


Filter rod length range

55 ~ 150 mm

Filter rod diameter range

5.5 ~ 8.0 mm

Optical resolution

0.03 mm

Measurement accuracy

±0.2 mm

Measurement speed

5 pcs/min

Hopper capacity

≥120 pcs


Requirements for service environment:


Ambient temperature

+5℃~+40℃ (recommended ambient temperature 22±2℃)

Recommended ambient humidity

60±5%RH No condensation

Power supply

AC220V±10% 50Hz±5%

Air supply

5 ~ 6bar, 30L/min
