HCT-I Heating Not-burning Cigarette Plug Unplug Power Tester

HCT-I Heating Not-burning Cigarette Plug Unplug Power Tester

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 set
USD 50000~100000 per set
Packaging Details
wooden case
Delivery Time
1~2 month
Payment Terms
T/T, Western Union,PayPal
Supply Ability
50 sets per months
Product Description

Product introduction:

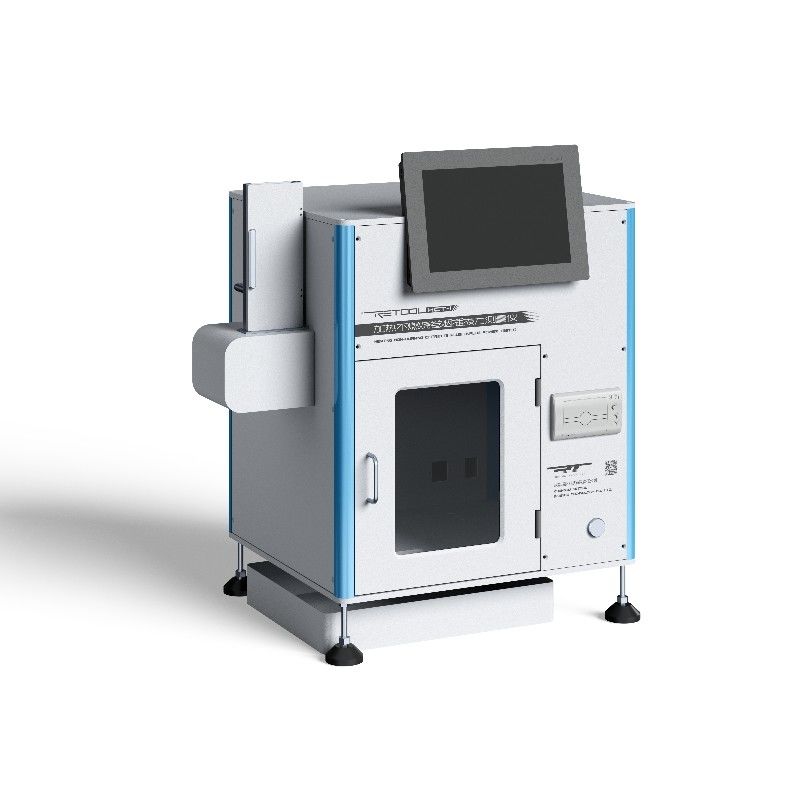

The HCT-I Heating Not-burning Cigarette Plug Unplug Power Tester can automatically detect the axial inserting and pulling force between heat-not-burn cigarette and heating device, provide data for the production of low-temperature cigarettes, and improve the detection level of tobacco products. It is a new advanced automatic detection device for cigarettes in the tobacco industry in China.


Main technical indicators:


Sample length range 43 ~ 50mm
Sample diameter range 7~ 8mm

Force measurement range


Force measurement accuracy

0.5 N

Measurement speed

2 pcs/min (fastest)

Cigarette holder capacity

≥25 pcs


Performance and features:

  • It adopts the quick-release cigarette holder for easy cigarette loading.
  • It adopts three-jaw cigarette holding design to fit the shape of cigarette inserting and pulling by fingers.
  • It adopts the quick-release heater clamping design, compatible with a variety of heaters, fast and adjustable.
  • With built-in smoking function, it can measure the pulling force after heating and smoking.
  • It provides the clamping with rotation function for pull-out and rotation of the pin heater.

Requirements for service environment:


Ambient temperature +5℃ ~ +40 ℃ (recommended ambient temperature 22±2℃)
Recommended ambient humidity 60±5%RH No condensation
Power supply AC220V±10% 50Hz±5%
Air supply 5~6bar, 30L/min
