HSC-I Capsule High Speed Counter

HSC-I Capsule High Speed Counter

Place of Origin:

Chengdu

Brand Name:

RT

Certification:

ISO

Model Number:

HSC-I

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 50000~100000 per set
Packaging Details
wooden case
Delivery Time
1~2 month
Payment Terms
T/T, Western Union,PayPal
Supply Ability
50 sets per months
Product Description

Requirements for service environment:



Operating ambient temperature

+10°C~+40°C

Operating ambient humidity

50% ~ 60% (optimal); 70% (max) no condensation

Power supply AC220V±10% 50Hz±5%
Air supply 5~6bar



Product introduction:

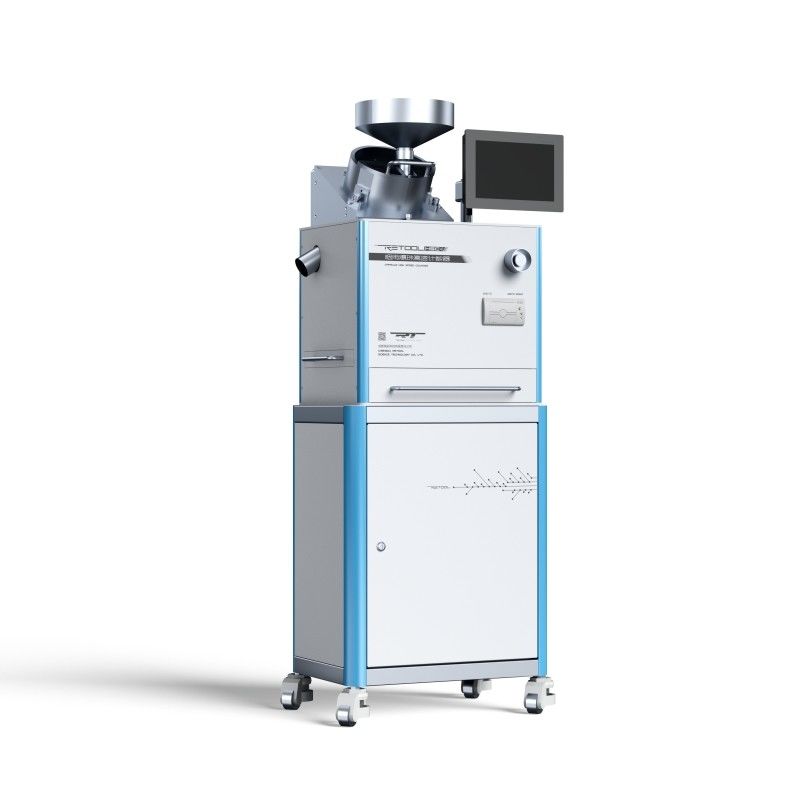

The HSC-I Capsule High Speed Counter is used to count the cigarette capsules. It can count a certain number of capsules one by one to obtain the accurate number of capsules.



Performance and features:

  1. It can count capsules of different diameters.
  2. Automatic counting mode is adopted. Put the capsules in the hopper and start automatic counting and detection.
  3. The capsules with different diameters can be counted only by changing different feeding plates.
  4. Compressed air is used to assist the feeding, so the capsules are placed more smoothly and efficiently.
  5. The built-in gas cleaning mode can automatically clean the feeding channel.
  6. It adds the accessory drawers, storage cabinets and casters for accessories storage and easy handling.
  7. Data processing: display, statistics, printing, saving and query of measurement results.
  8. Measurement data can be backed up and exported via USB interface.
  9. Built-in thermal printer prints measurement data.
  10. It adopts touch screen and Chinese graphical interface, easy to use and fast to master.

Main performance indicators:



Capsule type Cigarette capsule
Counting mode Detect one by one and count them all
Counting principle Shading effect of optical fiber
Capsule color Unlimited
Capsule diameter 2.6-4.5mm (change three accessories to adapt to different diameters)
Hopper capacity ≤1.5KG
Detection speed 5400 pcs/min
Detection mode Automatic
Counting accuracy 99.95%
Size L*W*H=530*420*1440mm
Weight 40KG
