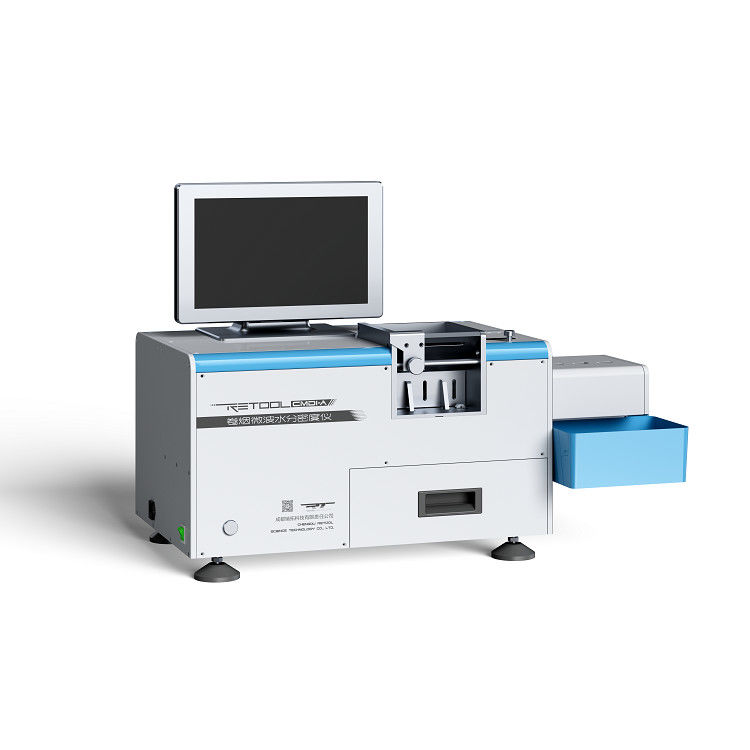

CMDI-A Cigarette Microwave Moisture Density Tester Instrument For Cigarette

CMDI-A Cigarette Microwave Moisture Density Tester Instrument For Cigarette

Place of Origin:


Brand Name:



ISO9001 ISO14001 ISO45001

Model Number:


Contact Us

Request A Quote
Product Details
High Precision, Easy To Operate, Durable
Air Source:
Power Supply:
AC 220V±10%
Cigarette Products Manufacturers, Testing Instrument, Measurement Equipment
Operating Ambient Temperature:
Humidity Range:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
wooden box
Delivery Time
2-3 month
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
10sets/2 month
Product Description

Product Description:

The CMDI-A Cigarette Microwave Moisture Density Tester is used to automatically measure the moisture,density and cutting position of cigarette section for the cigarette samples,thus evaluating and detecting the moisture-density proportion in the finished cigarette and the deviation of the cutting position of the cigarette section.It applies to multiple links in the cigarette production,such as on-line sampling inspection in the production workshop,and inspection and spot check of cigarette and fiter rod samples in testing stations and laboratories at all levels,etc.



  • 1.It can collect the moisture and density of cigarette and filter rod quickly and non-destructively,and calculate the cutting position of cigarette section.

  • 2It can measure the cigarettes of different length and different thickness without changing any parts.

  • 3.It can qualify and sort the sample test results according to preset parameters.

  • 4.It provides the microwave resonance technology for measurement regardless of the color of the test sample or different paper on the surface.

  • 5.It provides Chinese software with a user-friendly interface,and does not require professional training,easy to learn and use,simple and fast to grasp.

  • 6.It provides Windows 7 operating system and advanced industrial computer as the control core for a more stable working environment.
  • 7.It provides 15-inch color LCD display with touch screen and USB interface.
  • CMDI-A Cigarette Microwave Moisture Density Tester Instrument For Cigarette 0

Technical Parameters:

Sample length range:  55~150mm
Sample circumference rang: 15.5~27.0mm
Moisture measurement range: 0~20%
Moisture measurement accuracy: ±0.3%
Density measurement range: 0~600mg/cm³
Measurement speed: 15s±1s
Detection range of indentation Up to: 6 pcs/min
Hopper capacity: ≥150 pcs(at 7.8mm diameter)
Overall size: 880x470x690mm


Applicable  standards:

GB/T 22838.8-2009 Determination of the physical properties for cigarettes and filter rods -Part 8:Moisture content



Packing and Shipping:

Packaging and Shipping

The Cigarette Testing Instrument is packaged in a sturdy cardboard box with bubble wrap inside for extra protection. The box is labeled with the product name and serial number. The product is securely sealed and shipped in a reliable manner.
