CES-III Capsule Eccentric Detection System For Evaluating And Measuring Physical Charactoristics

CES-III Capsule Eccentric Detection System For Evaluating And Measuring Physical Charactoristics

Place of Origin:


Brand Name:



ISO9001 ISO14001 ISO45001

Model Number:


Contact Us

Request A Quote
Product Details
High Precision, Easy To Operate, Durable
Humidity Range:
Cigarette Products Manufacturers, Testing Instrument, Measurement Equipment
Power Supply:
AC 220V±10%
Operating Ambient Temperature:
Air Source:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
wooden box
Delivery Time
2-3 month
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
10sets/2 month
Product Description

Product Description:

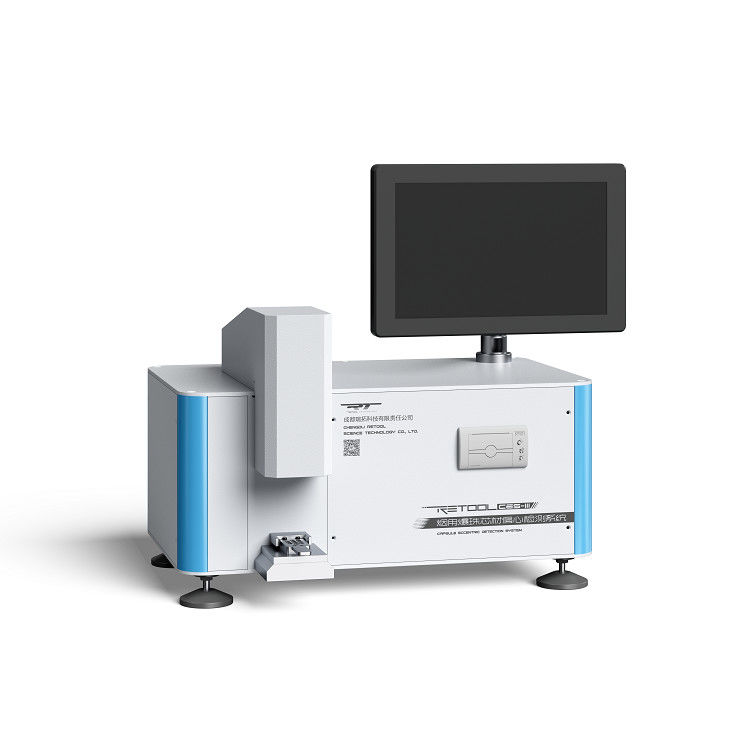

The CES-Ill Capsule Eccentric Detection System is mainly used for real-time sampling inspection of the eccentricity of the capsule shell and the essential oil in the capsule production process.It is an automated production auxiliary equipment to detect the eccentricity of shell and core material of cigarette capsules and check the real-time state of the capsule when it just dropped.The system adopts advanced image recognition and processing technologies to shoot without dead angle,which can accurately reflect the eccentricity of the capsule.



  • 1.It can measure the outer diameter of the wet capsule,the outer diameter of the core material and the eccentricity.
  • 2.It can measure capsules of various specifications.
  • 3.It can measure the capsules in most colors(core materials and packing materials shall be in different colors).
  • 4.Built-in thermal printer can be connected to external printer.
  • 5.The built-in database stores the measurement results and provides the query of historical data.
  • 6.It provides data statistics function and export function.
  • 7.With its own hopper and backlight cleaning system,the entire structure below the camera can be washed with water.

CES-III Capsule Eccentric Detection System For Evaluating And Measuring Physical Charactoristics 0

Technical Parameters:

Specification of wet capsule 3.0-6.0mm
umber of a single measurement 3 pcs
Time of a single measurement 15 seconds
Measurement speed 12 pcs/min
Measurement accuracy ±0.05mm
Optical resolution 0.05mm


Support and Services:

Cigarette Testing Instrument Technical Support and Service

In order to ensure that our customers receive the best quality products and service, we offer comprehensive technical support and service for our Cigarette Testing Instrument. Our technical support includes:

  • Providing technical advice on the selection, installation, operation, and maintenance of Cigarette Testing Instruments
  • Repair and maintenance of Cigarette Testing Instruments
  • Providing technical support for software related to Cigarette Testing Instruments
  • Carrying out inspections and tests of Cigarette Testing Instruments
  • Providing spare parts and consumable materials for Cigarette Testing Instruments

Our service also includes:

  • Providing pre-sales technical advice and on-site installation services
  • Providing on-site technical training services
  • Providing on-site technical debugging services
  • Providing on-site maintenance and repair services

If you have any questions or need any assistance, please contact us. Our team of experienced technicians is available to help you with any of your Cigarette Testing Instrument needs.


Packing and Shipping:

The Cigarette Testing Instrument is shipped in sturdy packaging to ensure safe delivery. It is packaged in a cardboard box, which is then sealed with a plastic wrapper. Inside the box, the instrument is securely wrapped in foam to protect it during transit. The box contains all the necessary components for assembly, including the instructions, and any additional items needed for proper operation.

The box should be handled with care to avoid any damages to the instrument. It should be transported with the utmost care, and at a temperature of no more than 25°C. The box should also be stored in a dry location to avoid any moisture damage.

For international shipments, the instrument must be declared as a "Cigarette Testing Instrument" on the shipping documents. It should also be clearly marked as "Fragile" to ensure it is handled with care during transit.
